Girder Erection

Professional Girder Erection Solutions for Bridge Construction Projects

Girder erection is one of the most critical stages in bridge construction. The accuracy, safety, and efficiency of girder installation directly affect the progress and quality of the entire project. Successful girder erection requires not only suitable lifting equipment, but also comprehensive planning, experienced site management, and proper coordination between transportation, lifting, positioning, and installation activities.

Based on practical bridge construction experience, BridgeConstructionHub provides technical knowledge and sourcing support related to girder erection methods, construction equipment, installation tools, and supporting products.

Our Girder Erection Expertise

1. Girder Transportation and Preparation

Before girder erection begins, careful planning is required to ensure safe transportation and smooth installation.

Main activities include:

• Girder transportation planning



• Temporary storage arrangement

• Lifting point inspection

• Installation area preparation

• Equipment positioning

• Safety and lifting procedure review

Proper preparation helps minimize risks during heavy lifting operations.

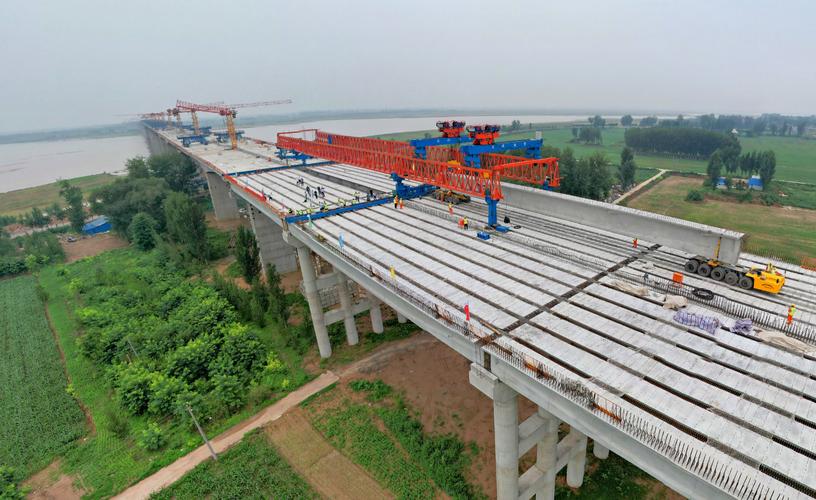

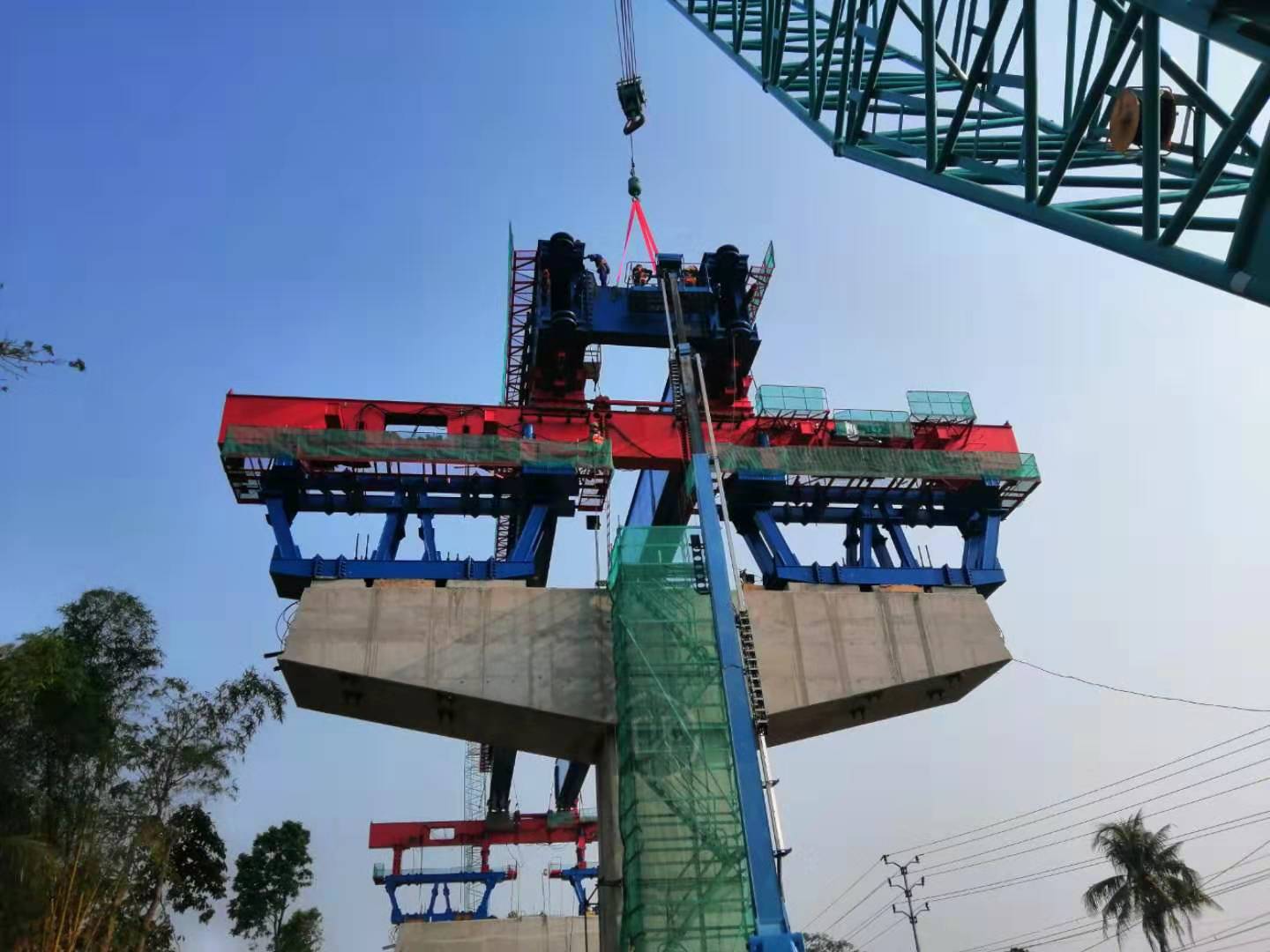

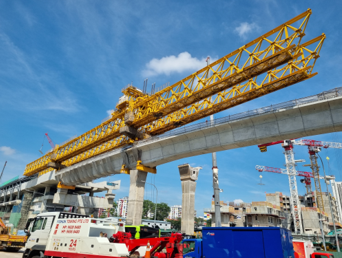

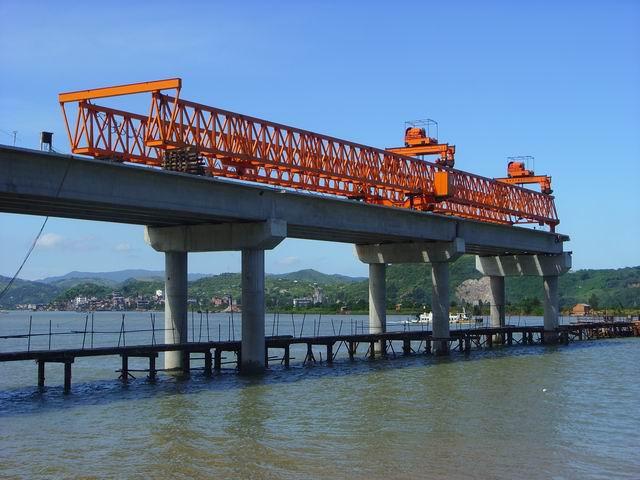

2. Launching Gantry Erection Method

Launching gantry systems are widely used for precast segmental bridge construction,

especially for:

• Highway bridges



• Railway bridges




• MRT viaducts

• Urban elevated structures

Main activities include:

• Launching gantry installation

• Main girder assembly

• Supporting system installation

• Hydraulic system setup

• Trial operation and inspection

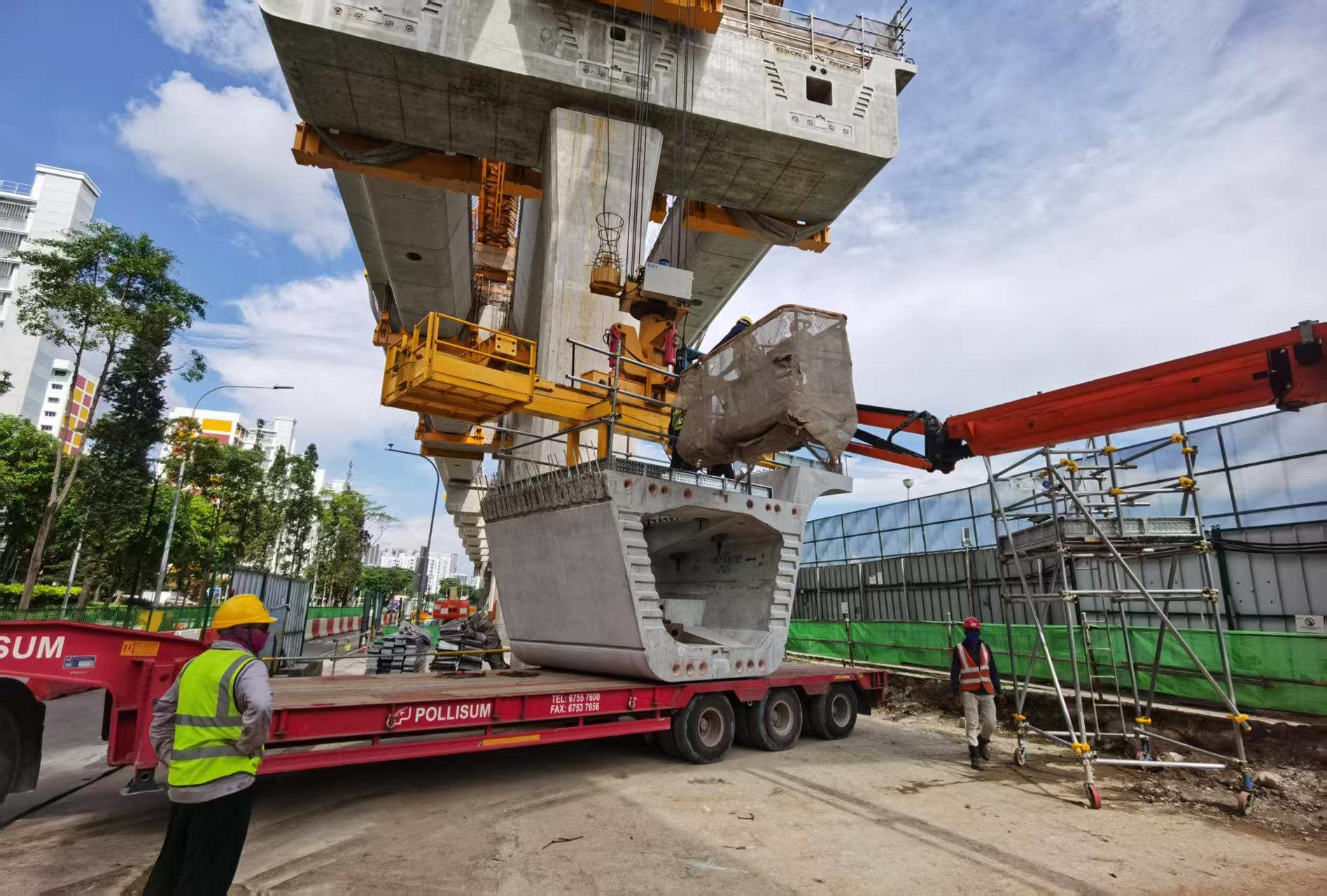

• Segment lifting and positioning

Key equipment includes:

• Launching Gantry

• Hydraulic Jack System

• Hydraulic Pump Station

• Segment Lifting System

• Temporary Support Equipment

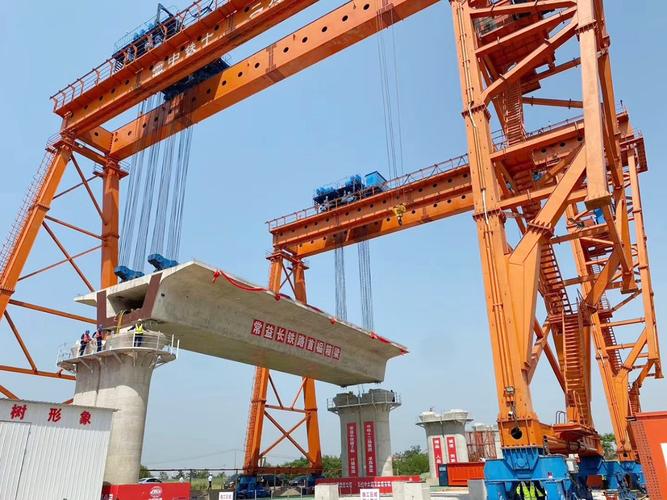

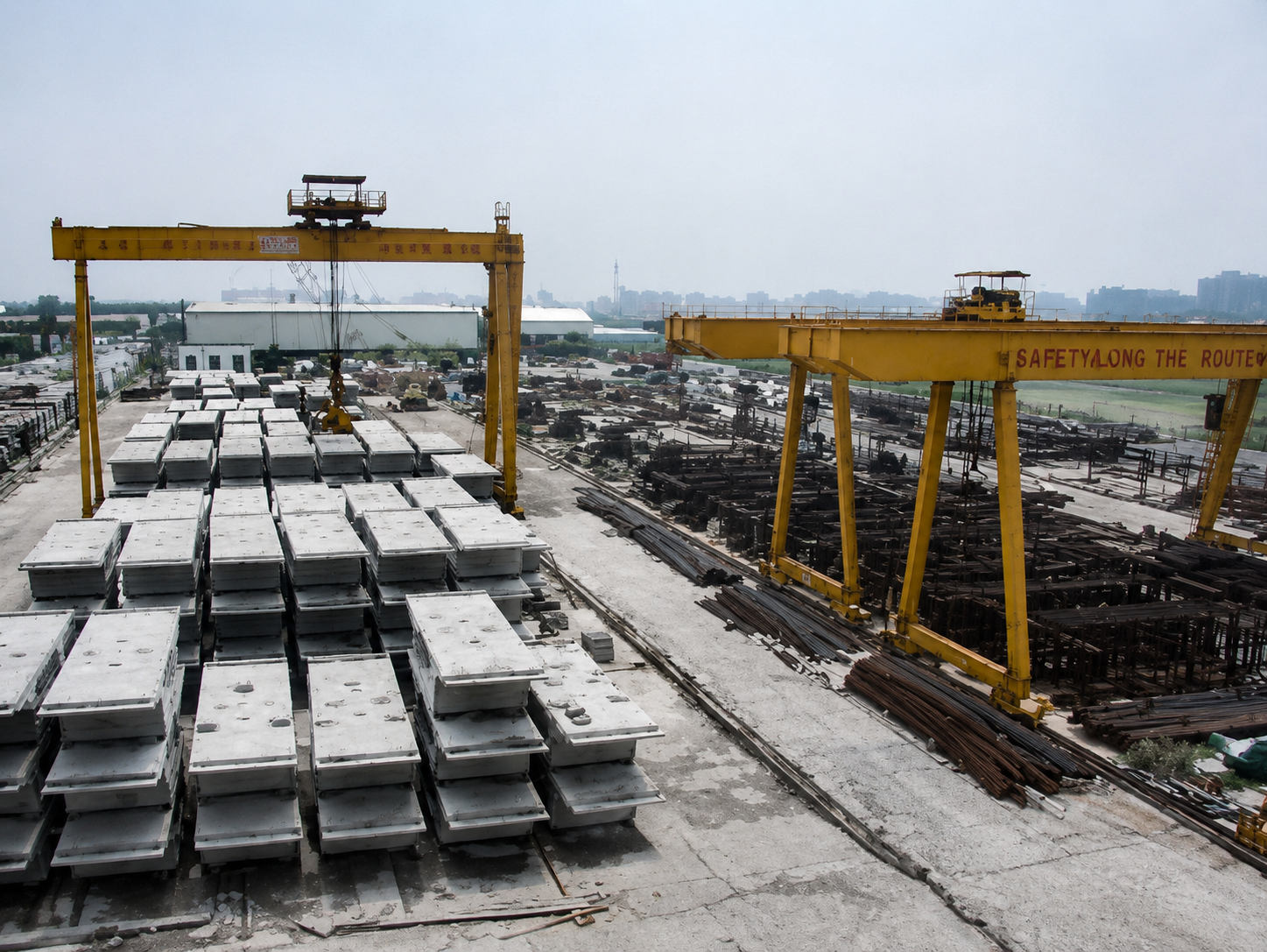

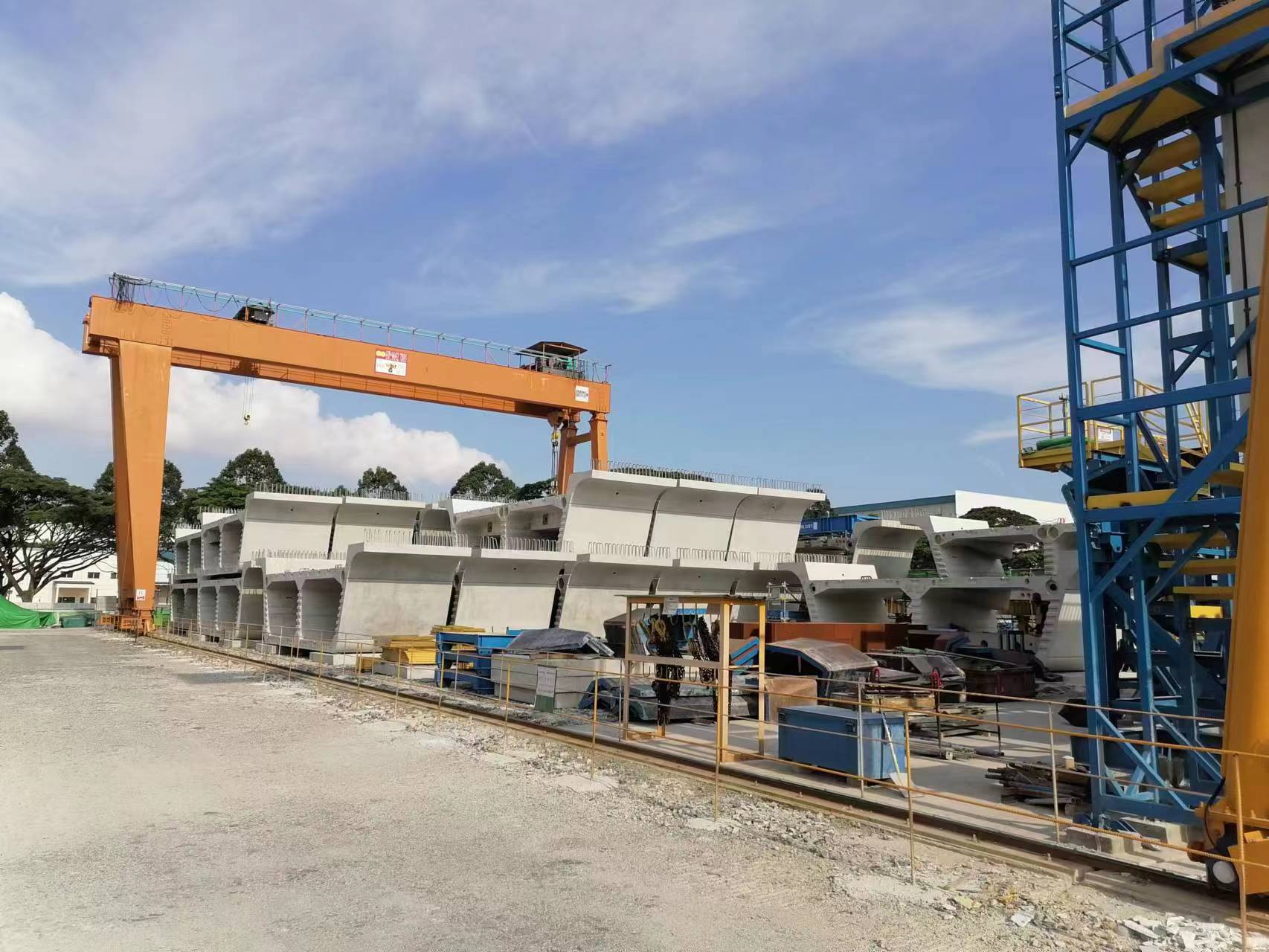

3. Gantry Crane Girder Installation

For certain bridge projects, gantry cranes are used for lifting and positioning heavy bridge components.

Typical applications include:

• Precast beam installation

• Steel girder lifting

• Segment handling

• Construction yard operations

Important considerations include:

• Lifting capacity

• Working span

• Travel distance

• Ground condition

• Safety control system

Related equipment:

• Gantry Crane

• Electric Hoist

• Lifting Accessories

• Control System

• Safety Devices

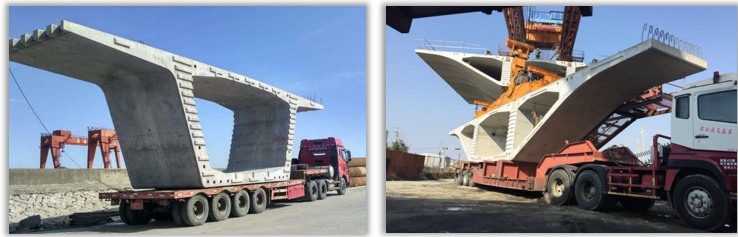

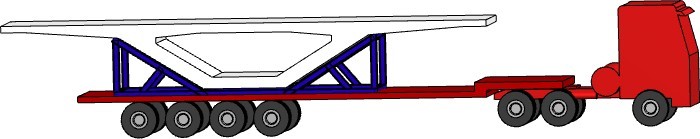

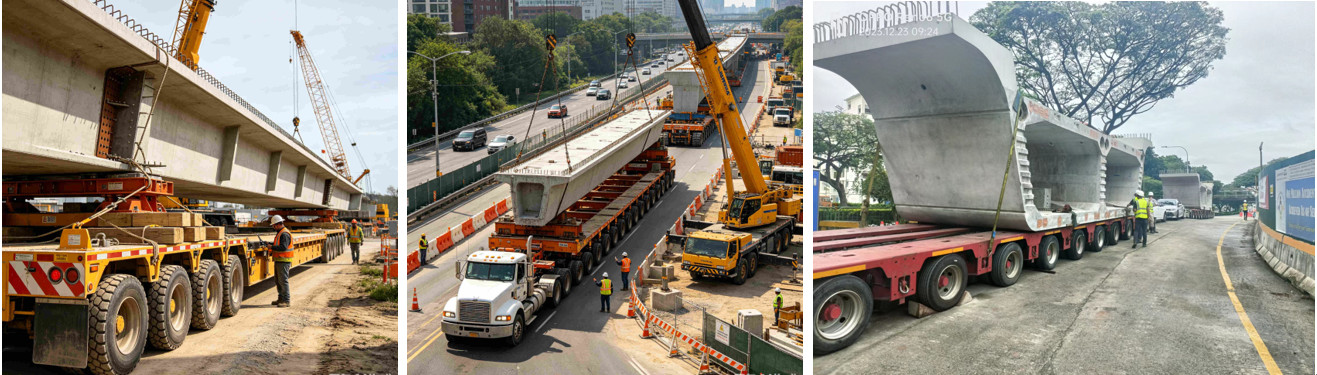

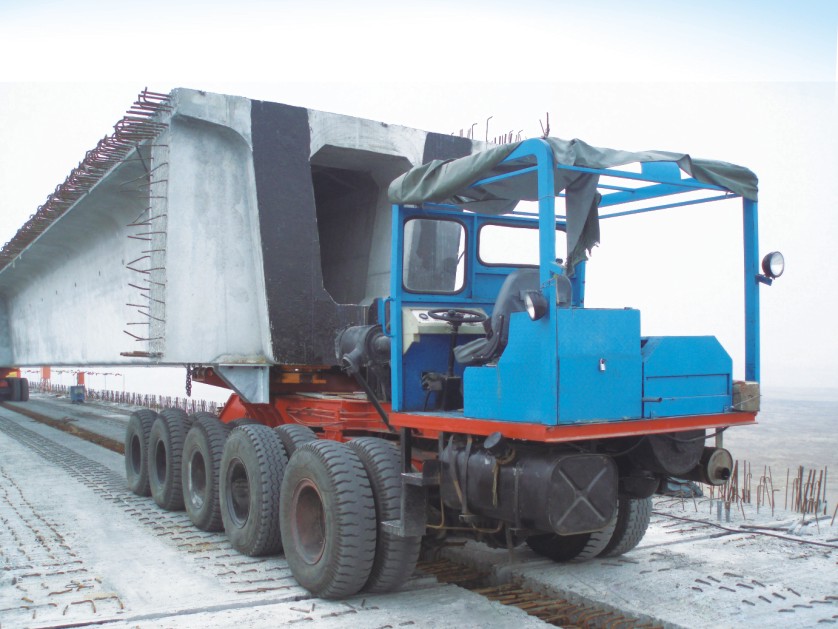

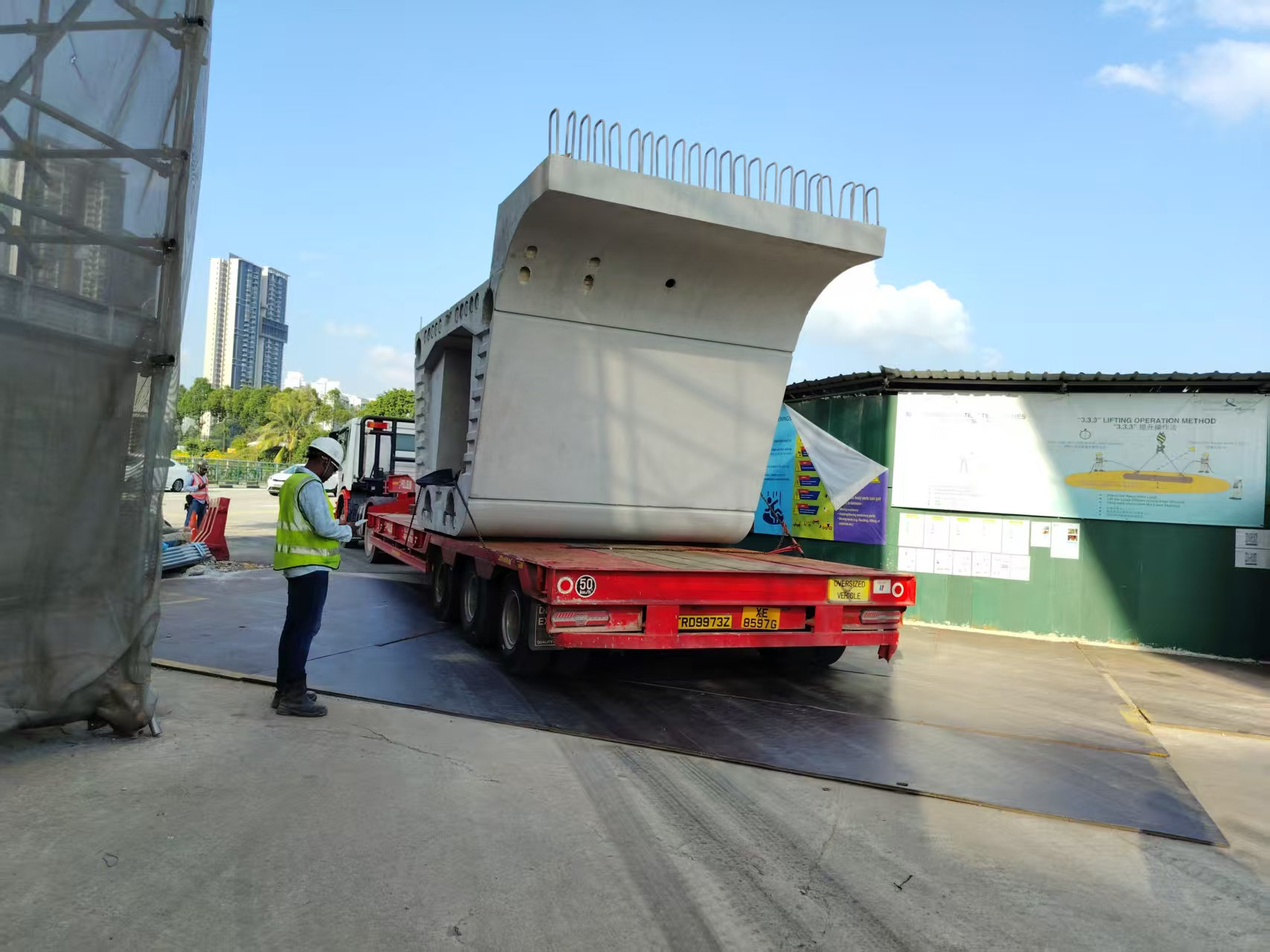

4. Beam Transporter and Heavy Transportation

Large bridge components require reliable transportation systems before installation.

Bridge construction may involve:

• Precast beam transportation

• Segment transportation

• Steel girder transportation

• Heavy equipment movement

Key equipment:

• Beam Transporter

• Self-Propelled Transporter

• Hydraulic Trailer

• Heavy Duty Trailer

Important factors:

• Load capacity

• Transportation route

• Site conditions

• Hydraulic control system

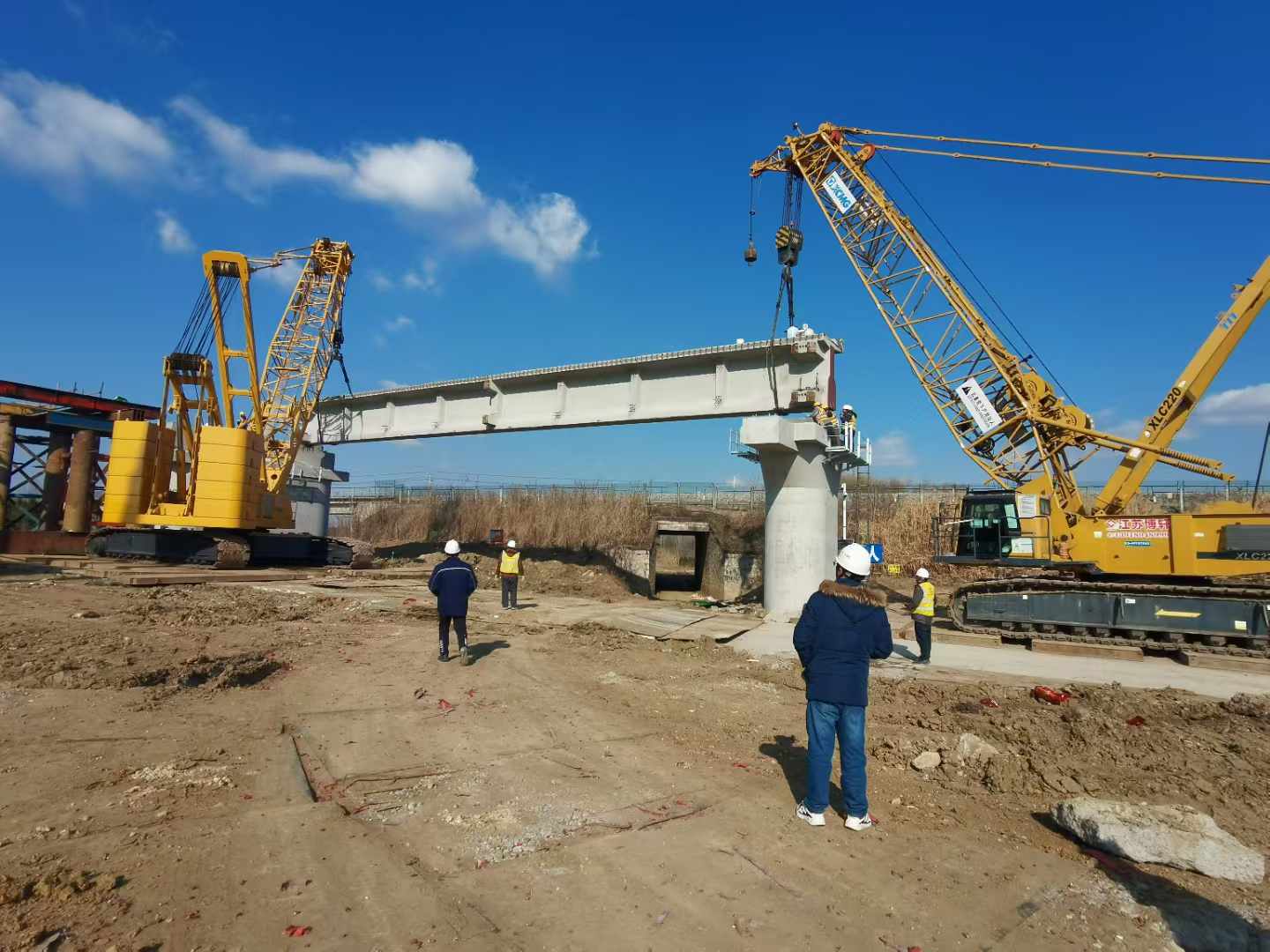

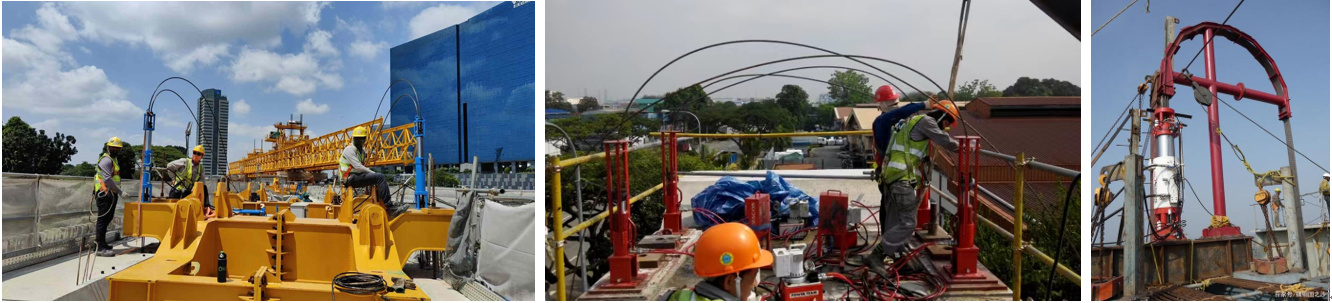

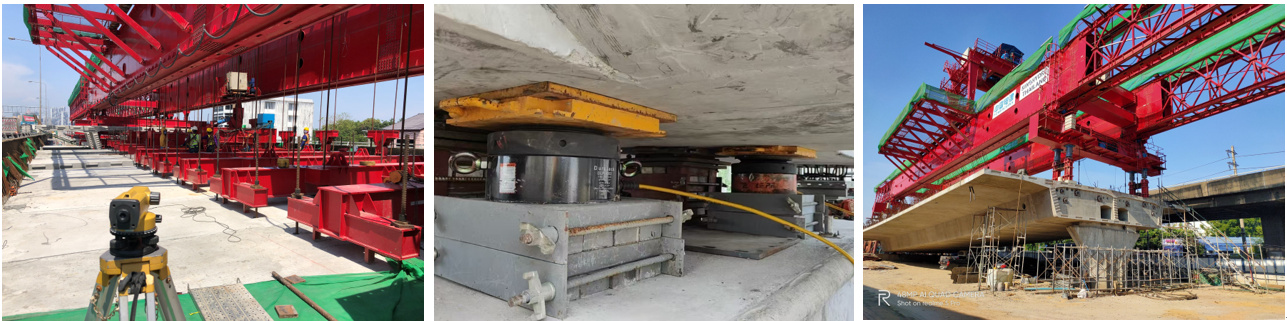

5. Hydraulic Lifting and Positioning

Hydraulic systems are widely used during girder erection due to their accuracy and high lifting capacity.

Applications include:

• Girder lifting

• Temporary support adjustment

• Equipment assembly

• Heavy component positioning

Typical hydraulic equipment:

• Hydraulic Jack

• Hydraulic Cylinder

• Hydraulic Pump

• Hydraulic  Hose

• Pressure Gauge

• Hydraulic Control System

Proper hydraulic selection and operation are essential for safe and accurate installation.

6. Girder Installation Process

A typical girder erection sequence includes:

Preparation Stage

• Review erection method statement

• Inspect equipment condition

• Confirm lifting arrangement

Lifting Stage

• Install lifting accessories

• Lift girder or segment

• Control movement and alignment

Positioning Stage

• Adjust girder position

• Check alignment

• Complete temporary fixing

Final Stage

• Complete connection works

• Remove temporary supports

• Perform inspection and acceptance

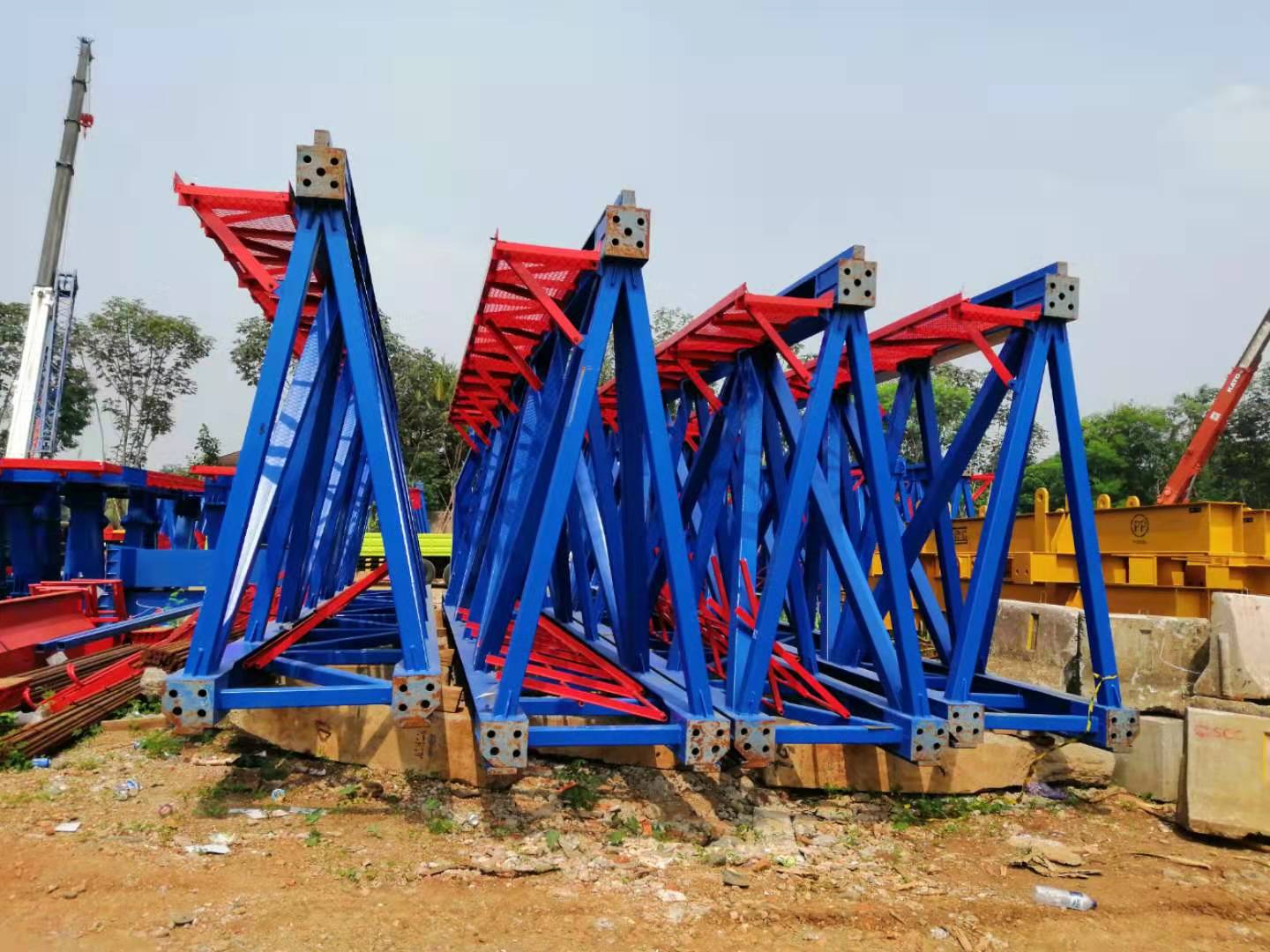

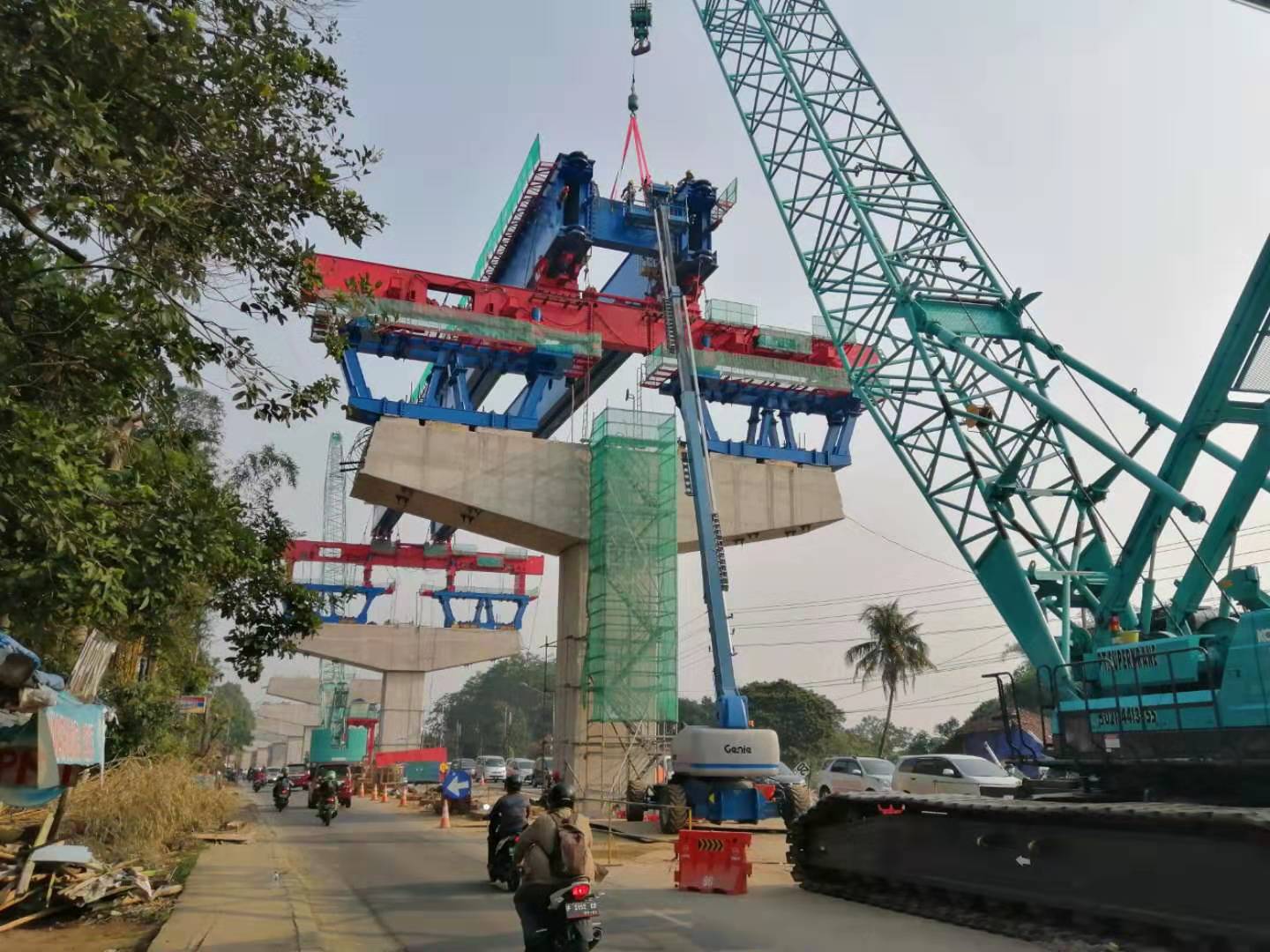

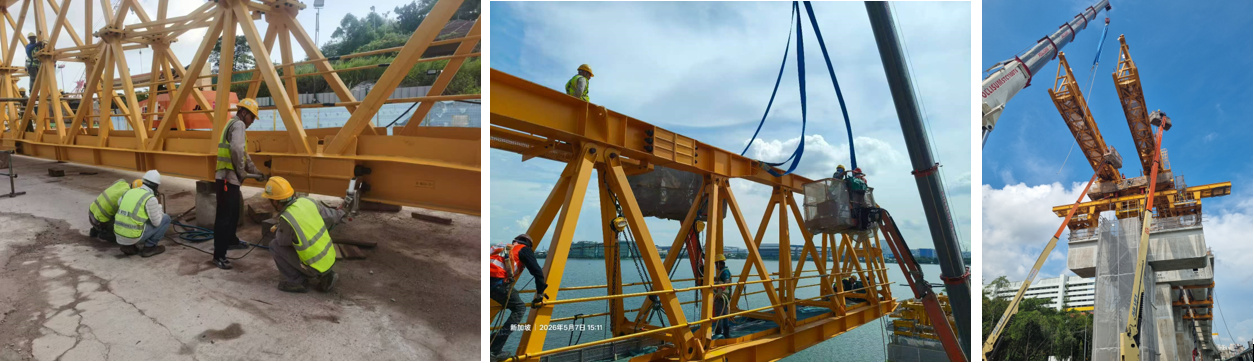

7. Bridge Construction Equipment Installation and Dismantling

Bridge construction equipment requires professional installation and dismantling procedures to ensure safety and efficiency.

Our knowledge covers:

Equipment Installation

Including:

• Launching Gantry assembly

• Hydraulic system connection

• Mechanical component installation

• Electrical system checking

• Trial operation

Equipment Dismantling

Including:

• Equipment  inspection

• Component disassembly

• Heavy component lifting

• Transportation arrangement

• Storage preparation

Proper dismantling is especially important for large bridge construction equipment due to its size, weight, and complexity.

Related Products and Equipment

BridgeConstructionHub provides sourcing support for:

Girder Erection Equipment

• Launching Gantry

• Gantry Crane

• Beam Launcher

• Beam Transporter

• Segment Lifting Equipment

Hydraulic Equipment

• Hydraulic Jack

• Hydraulic Pump

• Hydraulic Cylinder

• Hydraulic Hose

• Hydraulic Fittings

Installation Tools

• Hydraulic Torque Wrench

• Torque Wrench

• Lifting Tools

• Alignment Tools

• Measuring Equipment

Construction Accessories

• Temporary Supports

• Lifting  Accessories

• Fasteners

• Safety Equipment

Why Girder Erection Experience Matters

Girder erection is not only a lifting operation. It requires a complete understanding of:

• Construction sequence

• Equipment operation

• Hydraulic systems

• Site coordination

• Safety management

• Troubleshooting

With practical bridge construction experience, BridgeConstructionHub focuses on providing useful technical information and suitable sourcing solutions for contractors and engineering teams.
